1939 Laffly S25T | The National Military History Center | RM Sotheby's

Lot 141

The National Military History Center

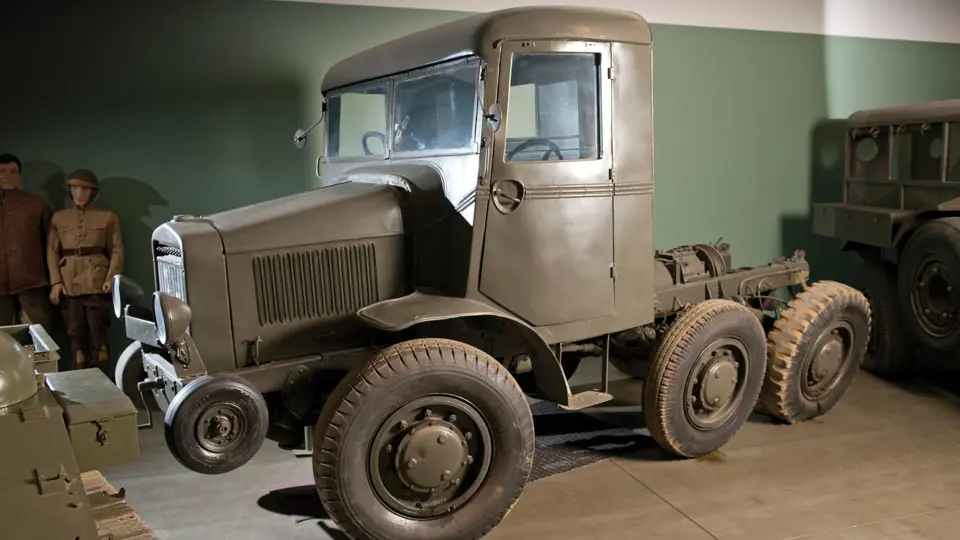

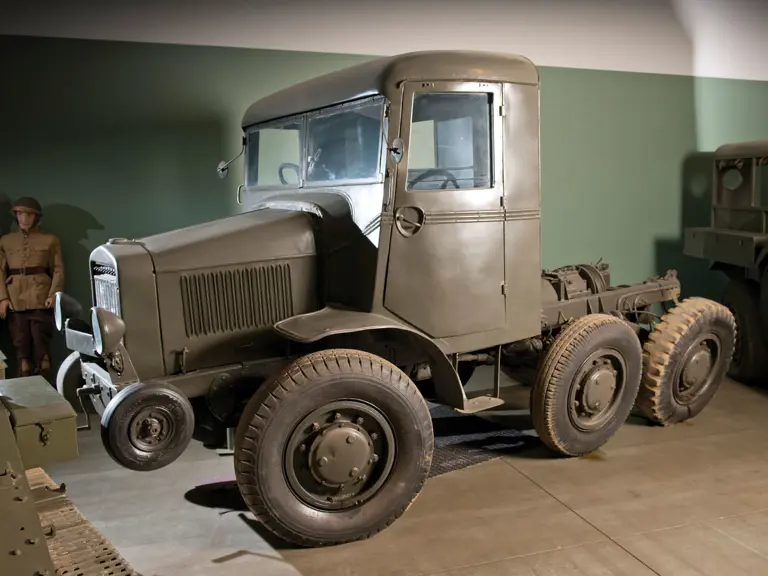

1939 Laffly S25T

{{lr.item.text}}

$10,000 USD | Sold

United States | Auburn, Indiana

{{internetCurrentBid}}

{{internetTimeLeft}}

Results
Details Additional Information
language
Identification No.
S25T
Addendum: All military vehicles and artifacts offered in this sale are sold "As Is" and "For collector purposes only". These military vehicles and artifacts should never be loaded and/or fired with any ammunition. We make no warranty and/or representations as to the suitability or fitness of these items for use. By purchasing military vehicles and artifacts you hereby and irrevocably waive any and all claims against Auctions America by RM, Inc. and agree to indemnify and hold harmless Auctions America by RM, Inc. from any injuries or death associated with these military vehicles and artifacts. Please note, there may be an associated licensing fee based on the location of licensing, and bidder must satisfy himself as to all licensing and import requirements in his home state or country.

Please Note: Information regarding these museum display vehicles was provided by the National Military History Center and has not been independently verified by Auctions America by RM ("AA"). As such, AA does not verify, warrant or guarantee any of this information. Prior inspection and research by the buyer is highly encouraged and recommended.

ATTENTION: Buyers are responsible for securing transportation and moving/loading of lots. Lot may be left on display indefinitely in the museum free of charge with a signed loan agreement form. Lots are sold as is, where is.

Please note this is being sold on "Bill of Sale" only.

Manufacturer: Laffly, Asnieres (Seine), France

Production Year: 1939

Engine: Laffly ohv, 3.5-liter, 60-hp, liquid-cooled, four-cylinder, gasoline

Transmission: Three-speed: three forward, one reverse

Length: 16-feet, 2-inches

Width: 7-feet

Height: 8-feet, 2-inches

Weight: Approximately 5.25-tons

Armor: None

Armament: None

Maximum Road Speed: Approximately 30-mph

Crew: Two

Wheelbase: 96-inches

Markings: French olive-green paint, Motorized Artillery Unit

The Laffly S25T 6x6, 4-ton Prime Mover entered production in 1939. Laffly and Hotchkiss were pioneers of French high-mobility, light and medium six-wheel drive cross-country vehicles. The Lafflys were considered to be very advanced designs. They were based, in part, on the Austrian ADG design of Austro-Daimler. The Laffly S25T utilized a four-speed gearbox in conjunction with dual-range transfer boxes and hub reduction gearing. Drive was by individual propeller shafts and there was independent suspension on the rear wheels. The suspension was of the leaf spring type on all six wheels. The brakes were mechanical type with servo assistance. The Laffly S25T had a bumper wheel assembly at the front of the chassis. This unique French design protected the radiator and drivetrain and prevented the vehicle from digging its nose into the ground. The Laffly S25T was designed as a tractor for the French Model 1936 105-mm field gun along with the ammunition and gun crew. A number of the 6x6 Laffly models were exported to Afghanistan, Persia and Greece. Only about 100 S25Ts were built and most had box-van bodies. Most were captured and used by the German Army after the occupation of 1940.
